Woodworking Punch Locator for Furniture Plate Splicing – Aluminium Alloy, Brass, High Carbon Steel, 8/10/15mm

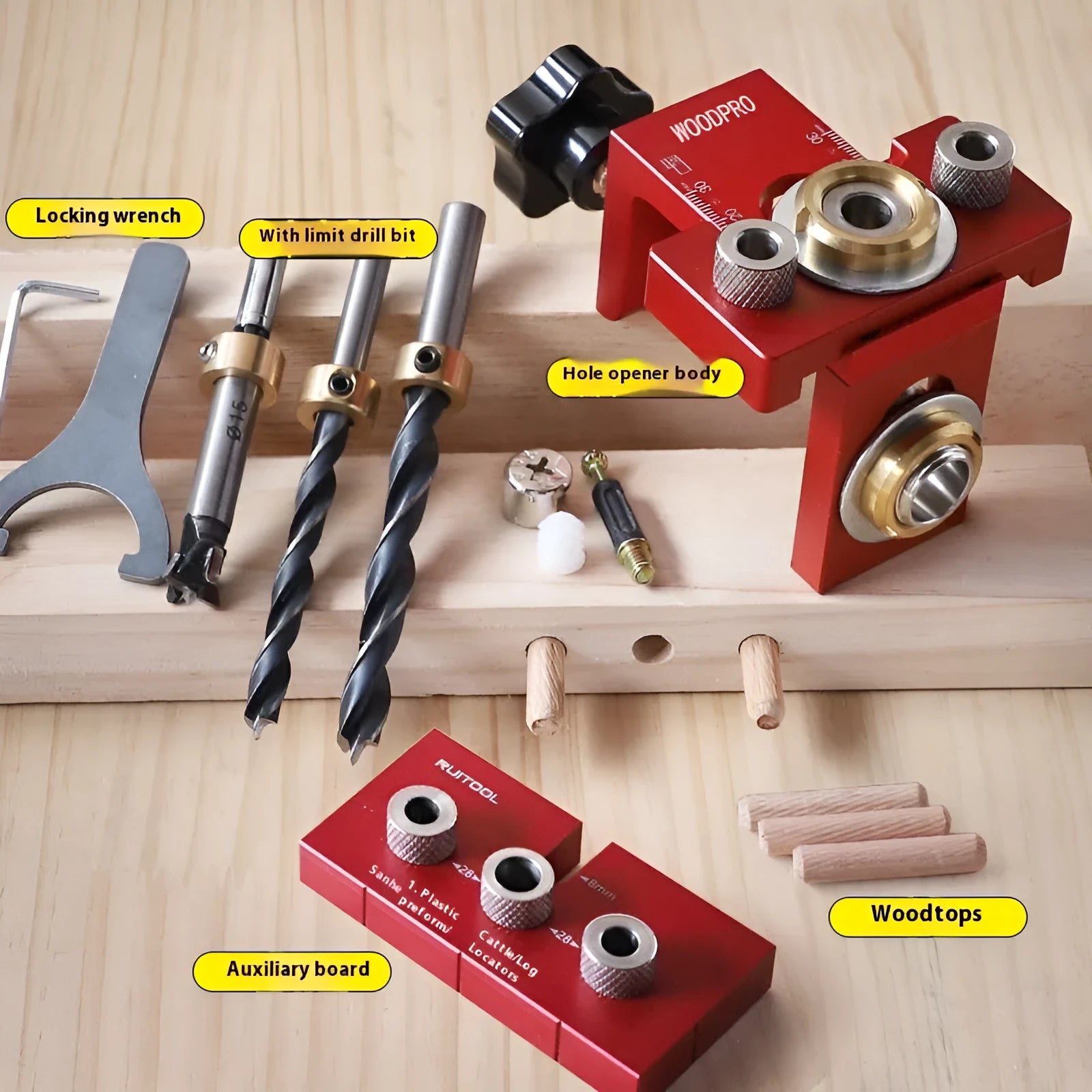

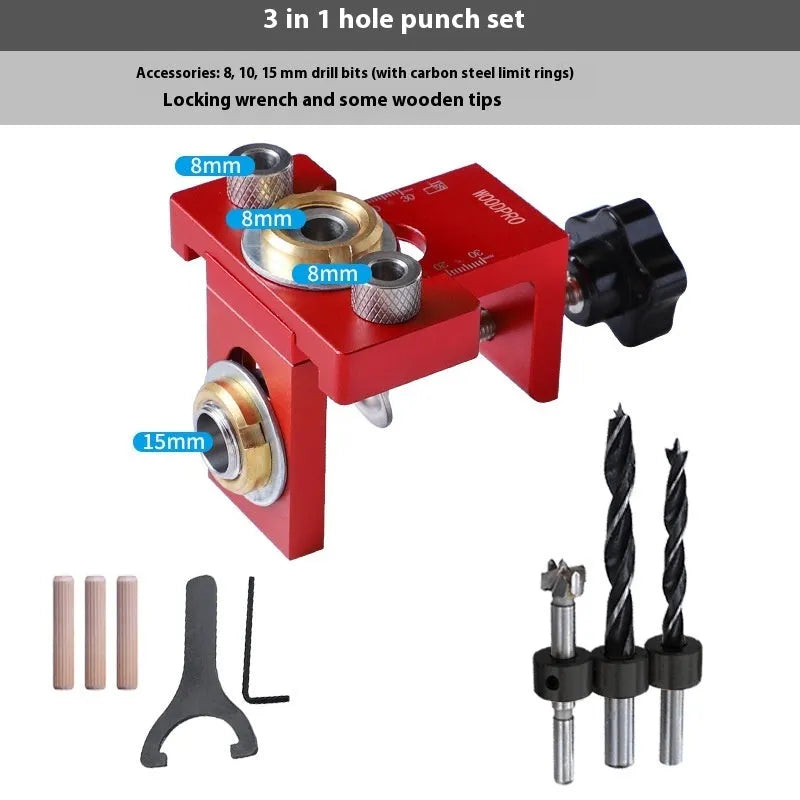

This woodworking punch locator tool is designed for accurate furniture plate splicing and installation in home DIY projects. It helps you align and drill holes consistently, reducing errors and saving time. The kit includes multiple drill bit sizes (8mm, 10mm, 15mm) with stop rings for depth control, plus wrenches and wood tips. Made from aluminium alloy, brass, and high carbon steel, it offers a practical solution for woodworking tasks.

Features and Construction

This punch locator is built with a combination of materials suited for precision drilling and assembly. It comes in several set options to match different needs. Below we break down the key build aspects.

Material and Build

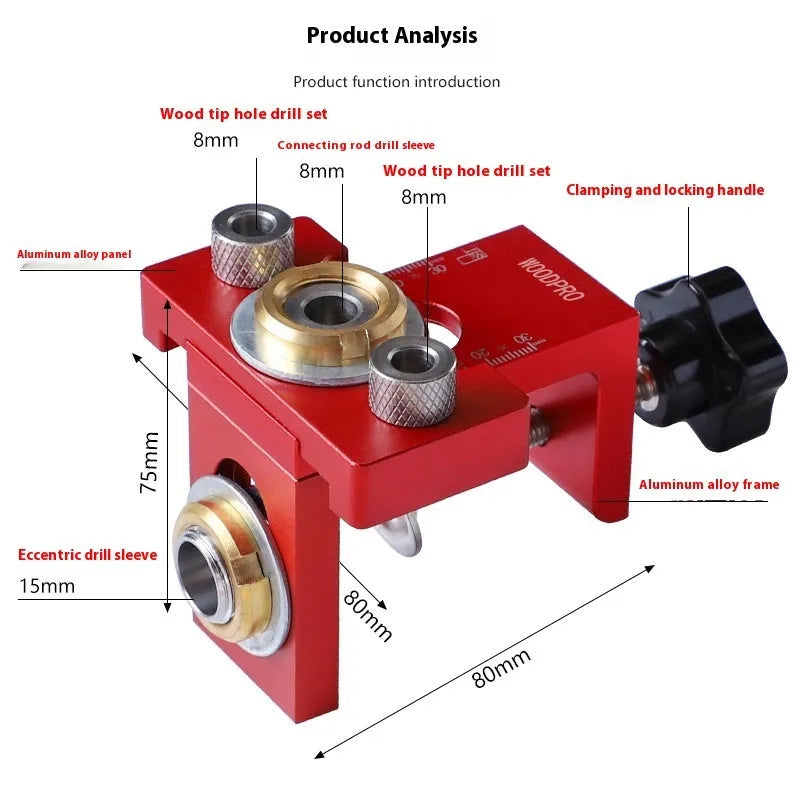

The locator body is made from aluminium alloy, offering a balance of weight and strength. Drill bits use high carbon steel for sharpness and longevity, while stop rings are available in either brass or high carbon steel depending on the set. This material choice supports repeated use in woodworking environments.

Size and Practical Fit

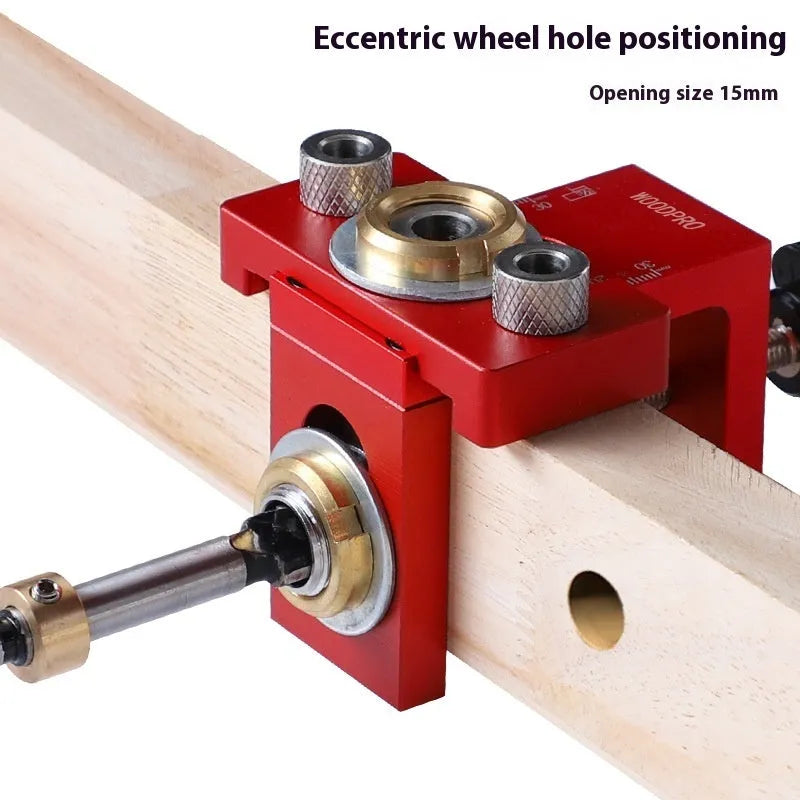

Three drill bit specifications are provided: 8mm, 10mm, and 15mm. These cover common hole sizes for furniture connectors and dowels. The included large and small wrenches allow easy bit changes, and the wood tips assist with centering during pilot drilling.

Uses and Placement

This tool is intended for household and furniture plate splicing installation. It suits both professional woodworkers and home DIY enthusiasts. Below we outline typical scenarios.

Event or Professional Use

For professional furniture makers or assembly teams, the punch locator speeds up repetitive drilling tasks. Its multiple bit sizes and stop rings help maintain consistent hole depth across multiple workpieces, which is important for joint accuracy.

Everyday Home Use

Home DIYers can use this tool for assembling flat-pack furniture, repairing cabinets, or creating custom shelving. The compact kit includes all necessary components to get started without needing separate purchases of wrenches or pilot bits.

Benefits and Buying Value

This product offers practical advantages for woodworking projects. Here we highlight the main benefits supported by the source information.

Reuse and Low Maintenance

The aluminium alloy body and high carbon steel drill bits are built to withstand repeated use. The brass stop rings resist corrosion, helping the tool stay functional over time. Basic cleaning after use is sufficient to maintain performance.

Why Choose This Product

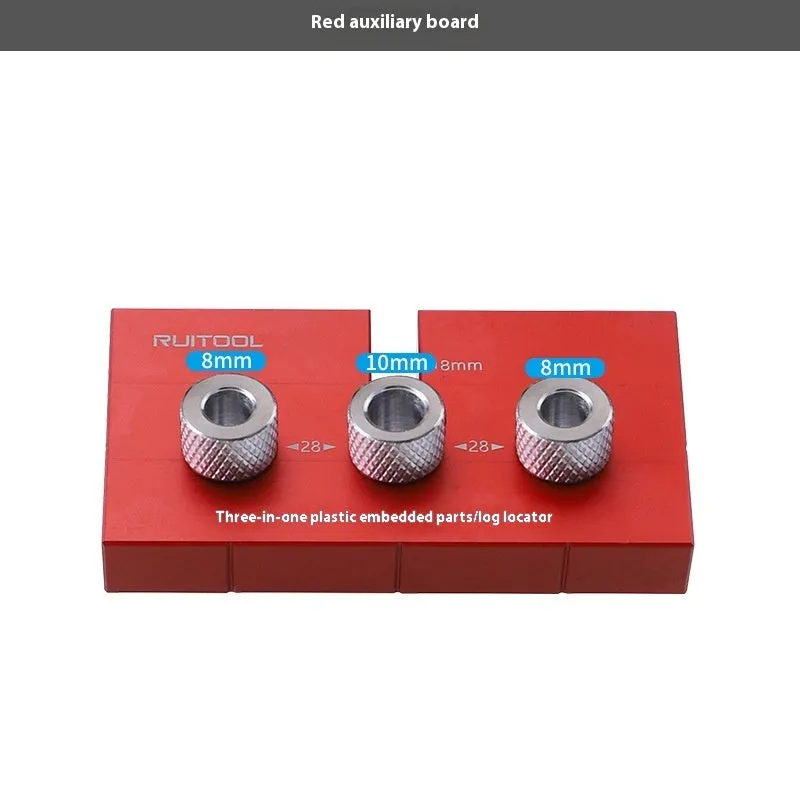

With three drill bit sizes, two types of stop rings (brass/carbon steel), and multiple set configurations (including auxiliary plates), you can select the kit that matches your specific project requirements. The inclusion of wrenches and wood tips means no extra tools are needed for basic operation.
