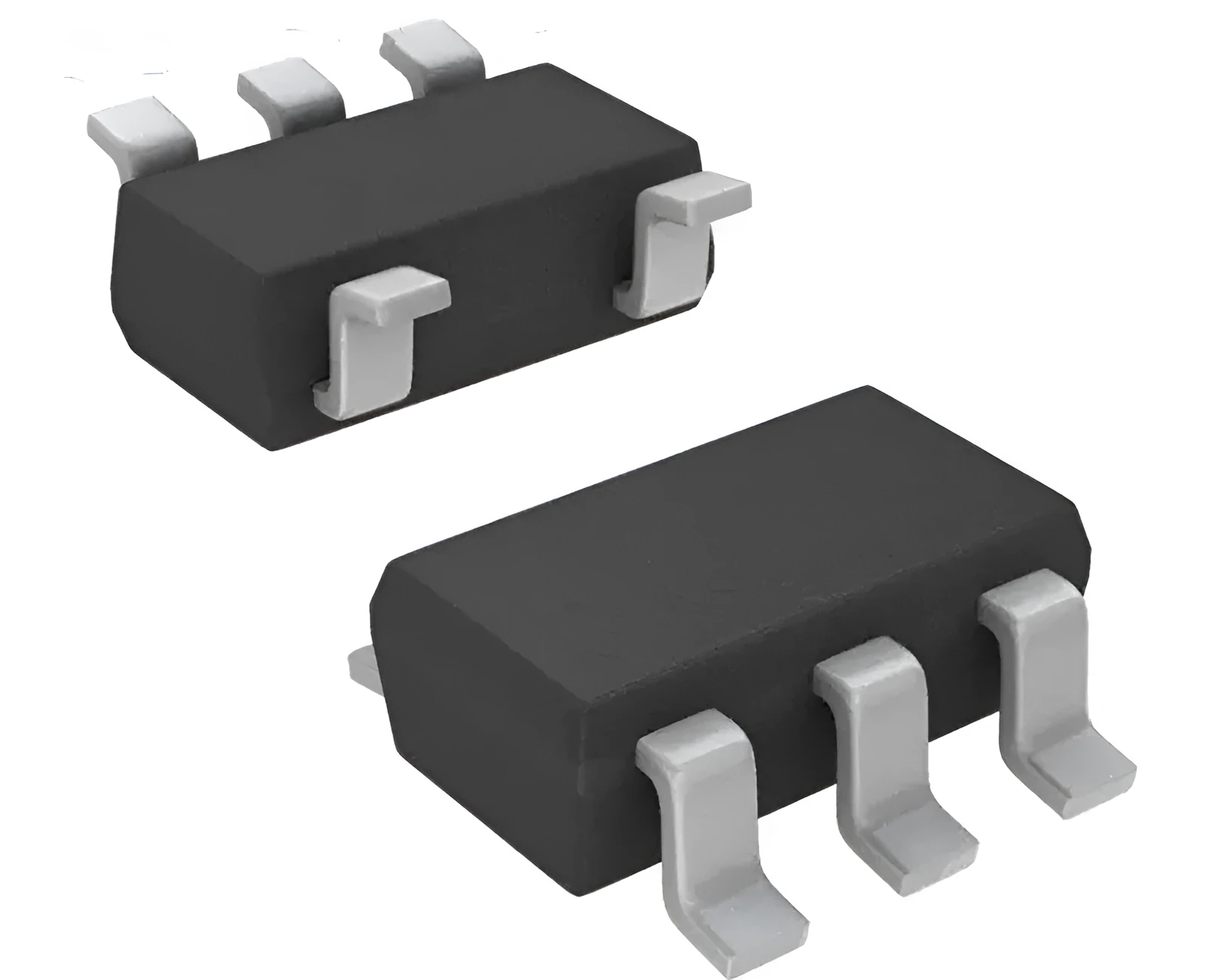

Microchip 24LC02BT-I/OT Memory Chip for Network Communication and Instrumentation

This memory chip, the 24LC02BT-I/OT from Microchip, is designed to provide dependable non-volatile storage for network communication and instrumentation applications. As a serial EEPROM, it retains data without power, making it suitable for storing configuration parameters, calibration data, or device logs. The I2C interface simplifies integration with microcontrollers and other digital systems, offering a straightforward way to add memory to embedded designs. Whether you're developing a new network switch or maintaining existing measurement equipment, this chip ensures your data remains intact across power cycles.

Features and Construction

The 24LC02BT-I/OT is built on mature semiconductor technology, ensuring consistent performance in controlled environments. Its surface mount package is optimised for modern PCB assembly processes.

Memory Capacity and Interface

This chip provides 2 Kbit of storage, organised as 256 x 8-bit bytes. Communication is via the I2C serial bus, which uses only two wires for data transfer, minimising pin count and simplifying circuit layout. The device supports standard and fast I2C modes.

Package Type and Assembly

The I/OT suffix denotes a surface mount package, specifically a 5-pin SOT-23, which is suitable for automated pick-and-place assembly. This compact footprint helps save board space in dense designs.

Operating Conditions

While specific voltage and temperature ranges are not listed in the source text, typical Microchip EEPROMs operate over a wide industrial temperature range. For exact specifications, consult the official datasheet.

Uses and Placement

This memory chip is typically soldered onto a printed circuit board within network communication gear or measurement instruments. It serves as a local store for device-specific data.

Network Communication Equipment

In routers, switches, or modems, the chip can hold MAC addresses, firmware settings, or network credentials. Its non-volatile nature ensures settings survive reboots.

Instrumentation and Control

For multimeters, oscilloscopes, or industrial controllers, this EEPROM stores calibration offsets, user preferences, or operational logs. The I2C interface allows easy read and write access by the main processor.

Prototyping and Replacement

As a single piece, this chip is ideal for prototyping new designs or replacing a failed component in existing equipment. Engineers can verify circuit function before ordering larger quantities.

Benefits and Buying Value

Choosing a genuine Microchip component ensures design compatibility and reliable supply. The serial interface reduces wiring complexity compared to parallel memory chips.

Simple Integration

The I2C bus requires only SDA and SCL lines, plus power, making it easy to add to most microcontroller projects. Many development boards have dedicated I2C pins.

Low Power Consumption

EEPROMs typically draw very low current in standby and active modes, which is beneficial for battery-powered instruments. Data retention does not require any power.

Replacement and Upkeep

If a memory chip in existing equipment fails, this direct replacement can restore full functionality. Its compact size fits many standard footprints.
