LED Flashing Sound and Light Buzzer for Clear Panel-Mounted Alarms

This panel-mounted warning device combines a bright LED flash with an intermittent audible buzzer to create a highly noticeable alarm signal for industrial control panels, machinery, and secondary electrical distribution systems. It is designed to provide unambiguous status or fault indication, helping operators respond promptly. The unit supports a wide range of voltages, including AC and DC variants of 12V, 24V, and 220V, offering flexibility for integration into existing 22mm panel layouts. Its 3C certification confirms compliance with basic Chinese safety standards for electrical components.

Features and Construction

The buzzer delivers a combined audible and visual alert. Its construction is focused on reliable operation within standard electrical panel environments.

Material and Build

The core visual element is an LED light source, chosen for its efficiency and longevity in continuous or frequent flashing duty cycles. The device boasts an insulation resistance of ≥2 MΩ, a key specification that ensures safe electrical isolation between the internal circuits and the external panel or user. This level of resistance is a fundamental requirement for preventing leakage currents in low-voltage applications.

Size and Practical Fit

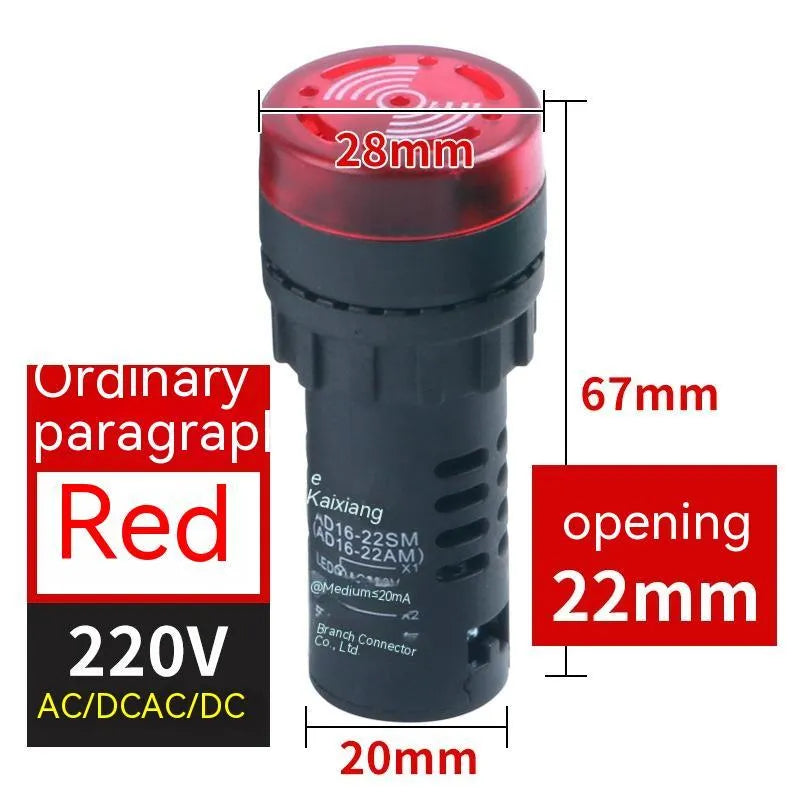

Installation is straightforward thanks to the standard 22mm mounting aperture. This size is common in many electrical enclosures and control cabinets, allowing for easy replacement or addition without specialised tooling. The compact design and light unit weight of 0.03 kg mean it adds minimal load to the panel door or surface.

Uses and Placement

This sound and light buzzer is specified for secondary distribution applications, indicating its primary role in downstream electrical circuits rather than primary power feeds.

Event or Professional Use

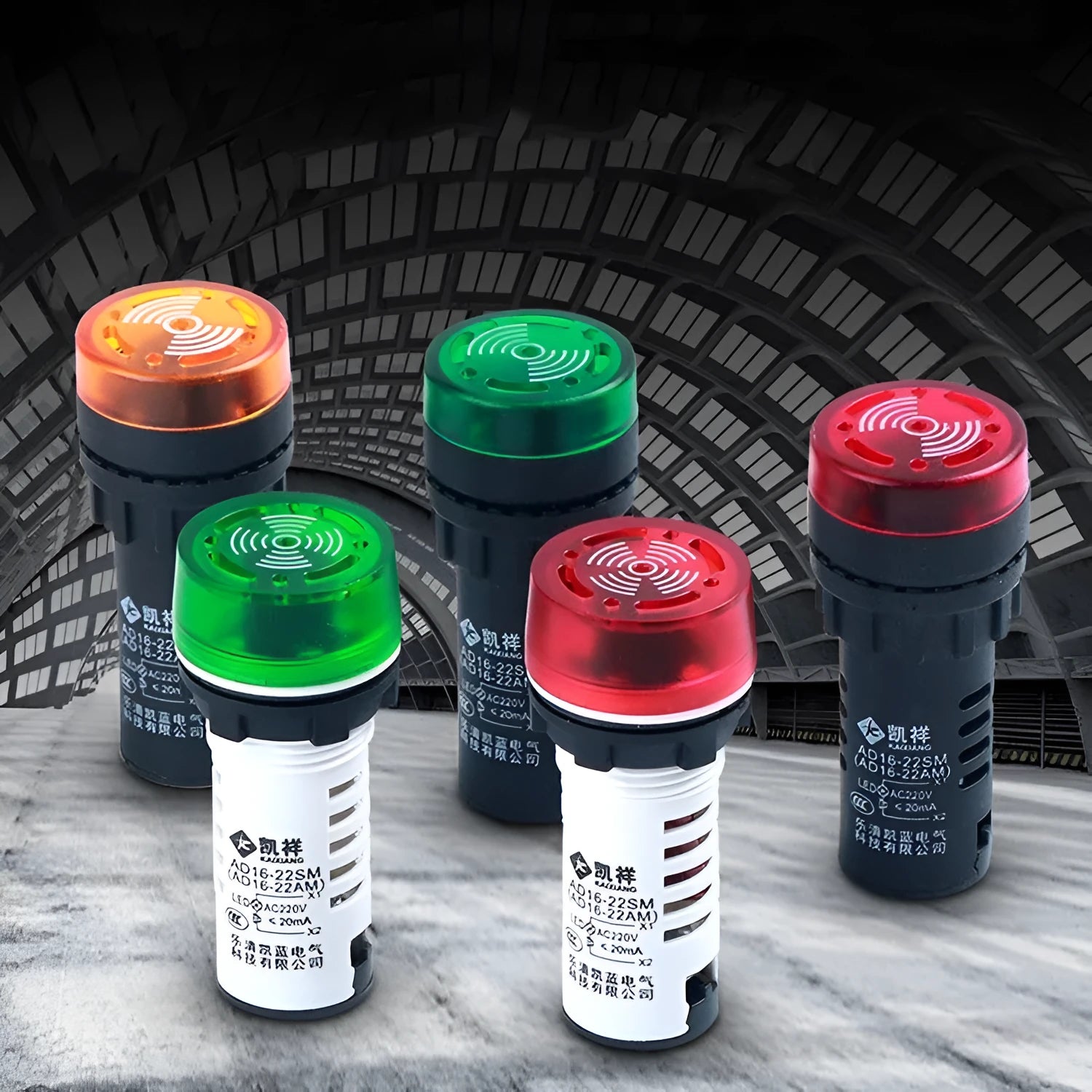

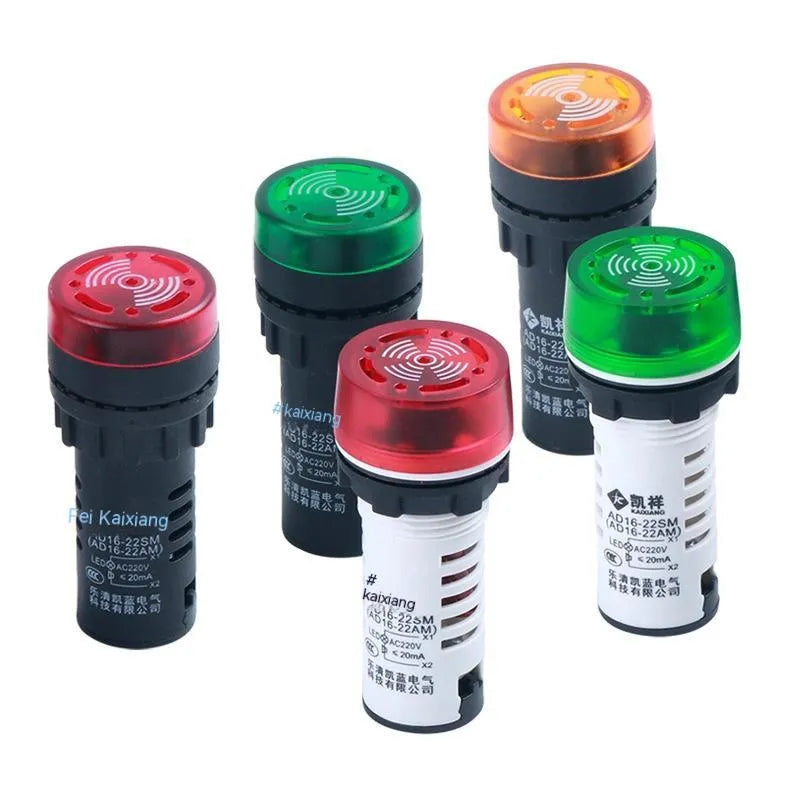

In professional settings, it can signal machine cycle completion, process faults, system overloads, or safety interlock triggers. The intermittent sound type is particularly effective in noisy environments where a continuous tone might blend into background noise. The choice of colour—red, green, or yellow—allows for intuitive coding (e.g., red for fault, green for ready, yellow for warning).

Everyday Home Use

While designed for industrial panels, it could be integrated into sophisticated home workshop setups, automated gardening systems, or security project boxes where a clear, remote alarm signal is needed from a control unit. The low 20mA current draw makes it suitable for battery-backed or low-power circuits.

Benefits and Buying Value

The value lies in its dual-mode alerting, standardised fit, and flexible electrical compatibility.

Reuse and Low Maintenance

The use of an LED as the light source contributes to lower maintenance needs compared to incandescent bulbs, as LEDs are less prone to failure from vibration or frequent switching. The device is a standalone unit; if the application changes, it can be repurposed to a different panel or project that requires a 22mm warning indicator.

Why Choose This Product

This buzzer offers a practical solution where space is limited but a clear, unambiguous alarm is required. Having both sound and light in one 22mm package saves panel space compared to installing separate components. The availability of multiple voltage options and colours in one product line simplifies sourcing and stock-keeping for installers and maintenance engineers.
