UTi260B handheld infrared thermal imager for industrial temperature measurement and electrical troubleshooting

The UTi260B infrared thermal imager represents a practical tool for professionals needing to identify thermal anomalies in electrical systems, mechanical components, and building structures. With its measurement capability spanning from -10℃ to 400℃, this handheld device caters to various industrial, maintenance, and building inspection applications. The imager's ±2% measurement accuracy provides reliable data for comparative analysis and preventative maintenance planning. Featuring an IP65-rated case that offers protection against dust and water ingress, along with 2-metre drop resistance, the UTi260B is built to withstand typical workshop and site conditions where thermal diagnostics are required.

Features and Construction

The UTi260B thermal imager incorporates several features designed for practical temperature measurement applications in professional environments. From its display specifications to its data capture capabilities, each element serves a specific function in thermal imaging workflow.

Material and Build

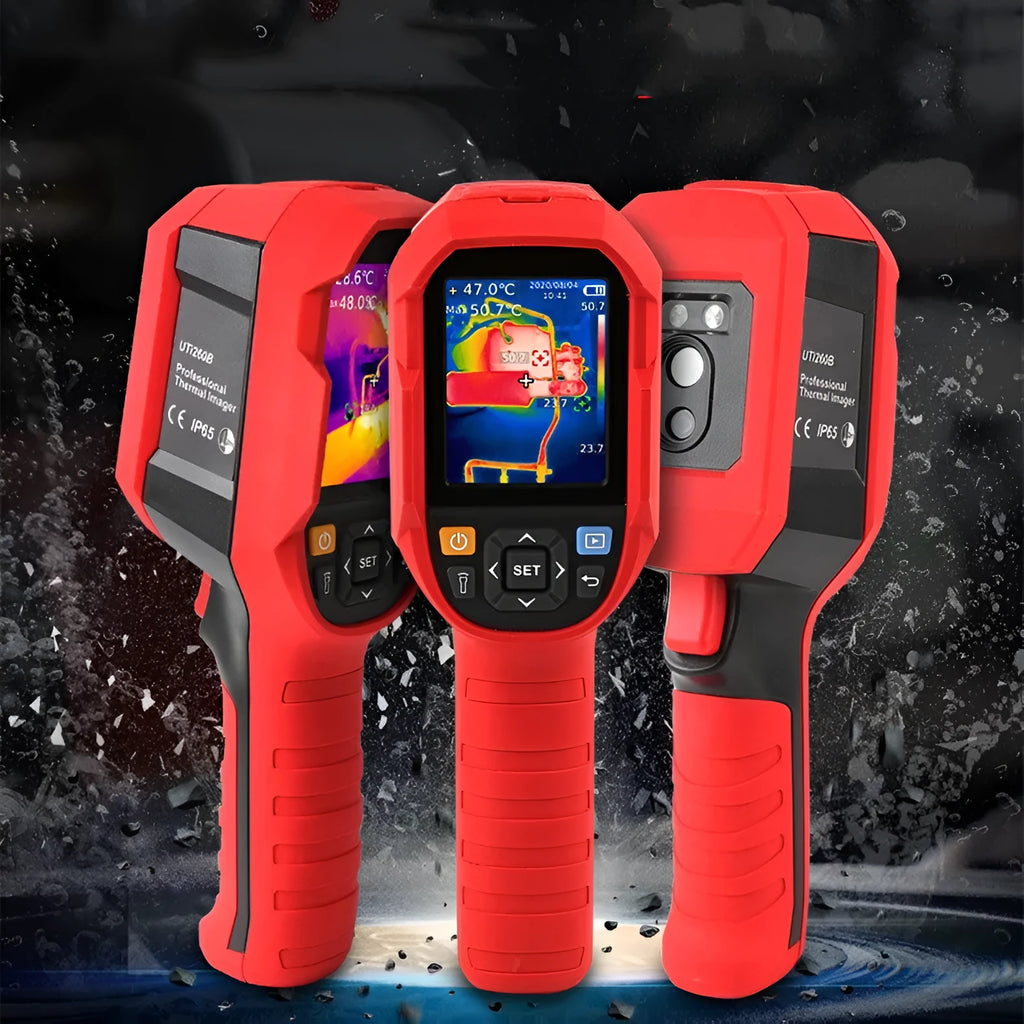

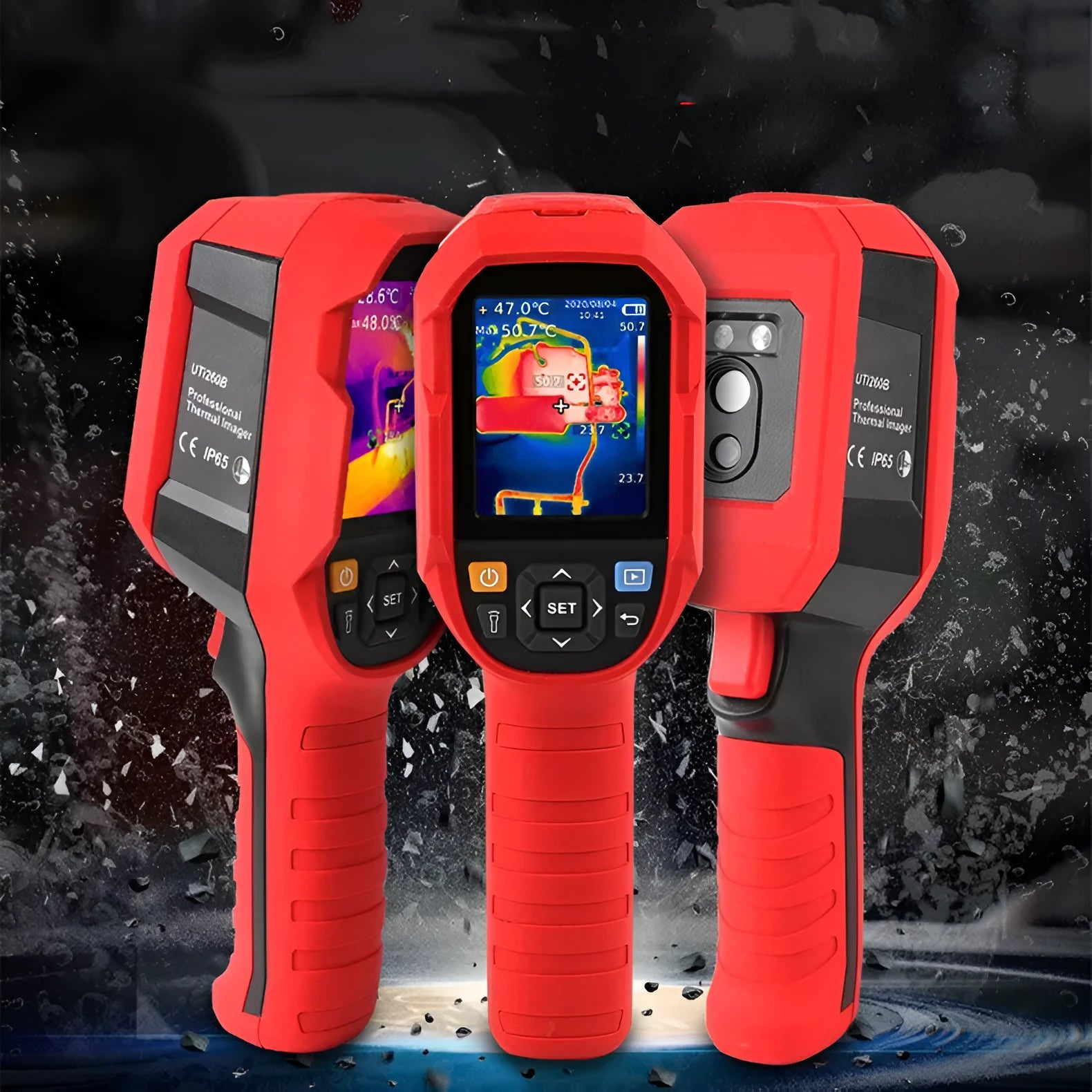

The external housing of the UTi260B thermal imager carries an IP65 rating, indicating protection against dust ingress and low-pressure water jets from any direction. This construction makes the device suitable for use in industrial settings where dust or occasional moisture might be present. The 2-metre drop protection specification suggests the casing is designed to withstand accidental impacts from typical working heights. These build characteristics support practical usage in workshops, electrical rooms, mechanical spaces, and outdoor inspection scenarios where equipment durability matters.

Size and Practical Fit

With dimensions measuring 236mm x 75.5mm x 86mm, the UTi260B presents a handheld form factor designed for single-handed operation during inspections. The size allows for comfortable gripping while scanning equipment or structures, and the inclusion of a standard 1/4-inch tripod mounting hole provides flexibility for stationary monitoring when required. The 2.8-inch TFT screen offers sufficient viewing area for identifying thermal patterns without making the device bulky. These dimensional characteristics balance portability with functionality, enabling users to carry the imager to various inspection points while maintaining clear visual feedback.

Uses and Placement

The measurement capabilities and features of the UTi260B thermal imager lend themselves to specific professional applications where temperature monitoring provides diagnostic value. Understanding these applications helps clarify where this device delivers practical benefits.

Event or Professional Use

For electrical troubleshooting, the temperature measurement range from -10℃ to 400℃ allows identification of overheating components in switchgear, distribution panels, and connection points. The ±2% accuracy provides sufficiently reliable data for comparative measurements between phases or similar components. The fast high-temperature tracking feature mentioned in the specifications suggests the device can respond promptly to thermal changes, which is valuable when scanning multiple points in an electrical system. For HVAC and building inspection, the temperature range accommodates both sub-ambient refrigerant line monitoring and high-temperature furnace or boiler component checks.

Everyday Home Use

While primarily designed for professional applications, the UTi260B thermal imager could assist with home maintenance tasks where temperature differences indicate issues. Checking for heat loss around windows and doors, identifying underfloor heating irregularities, or locating overheating in household electrical panels represent potential applications. The inclusion of PC analysis software allows homeowners to document and review thermal patterns over time. However, users should note that the device operates within technical measurement parameters rather than simplified consumer interfaces, requiring reference to the manual for proper interpretation of readings.

Benefits and Buying Value

The practical advantages of the UTi260B thermal imager stem from its combination of measurement range, data capture capabilities, and durable construction. These elements contribute to a tool designed for repeated use in demanding environments.

Reuse and Low Maintenance

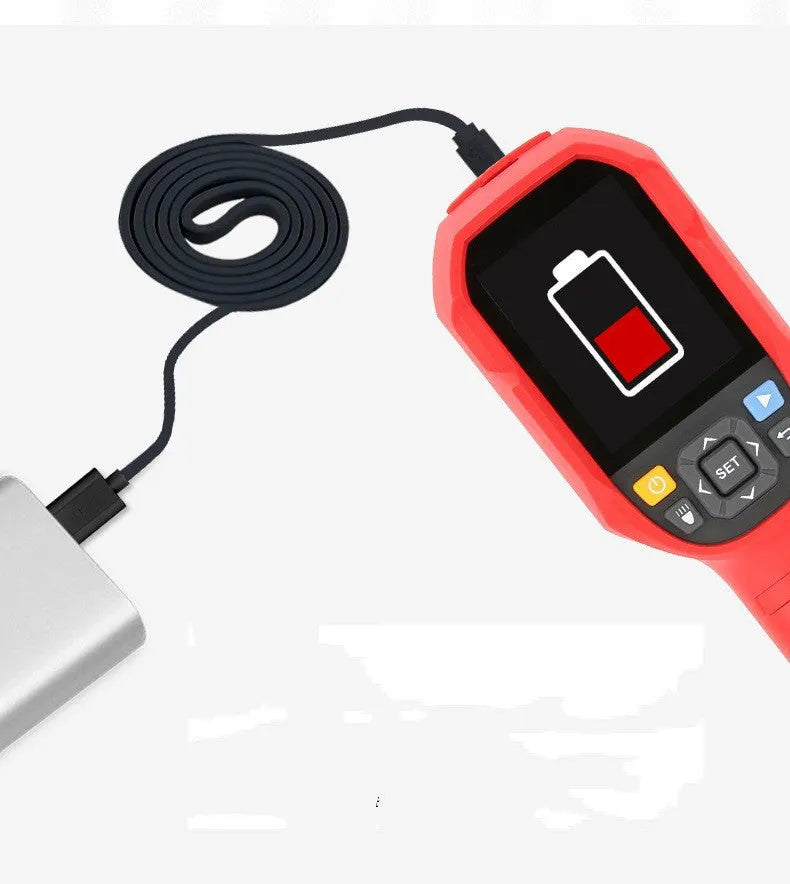

The IP65-rated construction reduces concerns about dust accumulation affecting internal components or accidental water exposure damaging the electronics. This protection level supports repeated use in various environments without requiring special handling precautions beyond reasonable care. The USB interface for lithium battery charging provides a standardised power solution that doesn't rely on proprietary chargers or disposable batteries. The included cloth bag offers basic storage protection between uses, helping to maintain the device's condition during transport or storage in toolkits.

Why Choose This Product

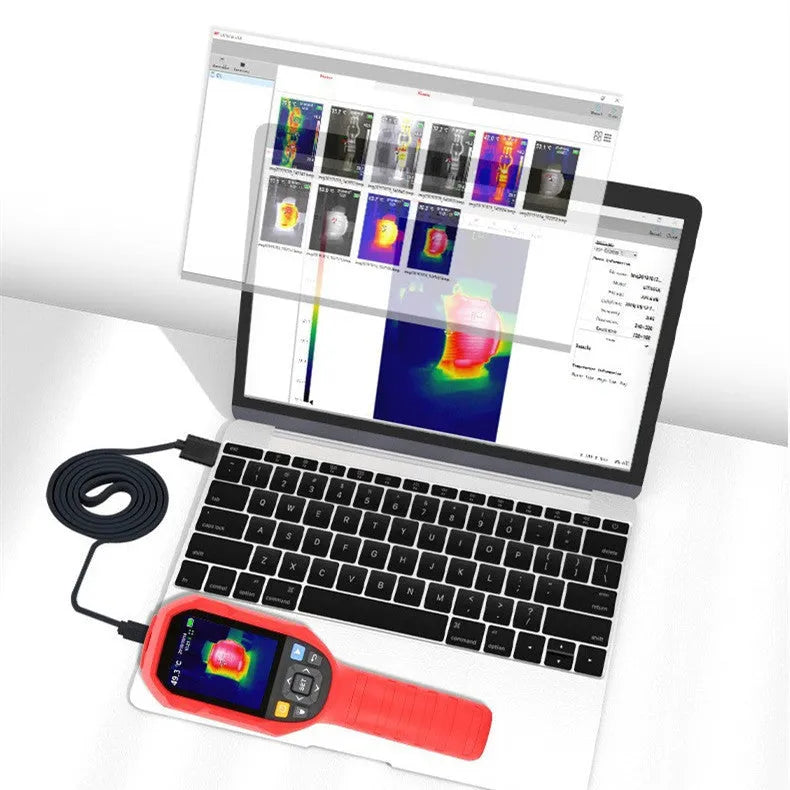

The UTi260B thermal imager provides a specific combination of temperature measurement range, display resolution, and protective features at its stated specifications. With a 320x240 pixel display showing imagery from a 160x120 infrared sensor, it offers clearer visualisation than basic thermal imagers with lower resolution displays. The inclusion of an 8GB mini TF card and PC analysis software creates a complete system for capturing, storing, and reviewing thermal images rather than just viewing them temporarily. For professionals needing to document findings for reports or client review, this data capture capability adds practical value beyond immediate visual inspection.
