Dali 12V Lithium Iron Phosphate Battery Protection Board with Balancing for 4-Cell Systems

This Dali Battery Protection Board, or Battery Management System (BMS), is a dedicated controller for safeguarding 12V lithium iron phosphate (LiFePO4) battery packs. Its primary function is to monitor and protect a four-cell battery configuration against common failure modes such as overcharging, over-discharging, excessive current draw, and short circuits. By providing these essential protections, it helps extend the operational life and maintain the safety of the battery pack. The board is offered in a comprehensive range of current capacities, from 15A for lighter duties up to 500A for very high-power applications, ensuring a suitable match for various projects from small solar setups to electric vehicle conversions and industrial backup power.

Features and Construction

The Dali BMS is built around a single-port design, simplifying installation by using common terminals for both charging and discharging. Its core architecture is specifically calibrated for the voltage characteristics of lithium iron phosphate chemistry arranged in a 4S (4-cell series) configuration.

Material and Build

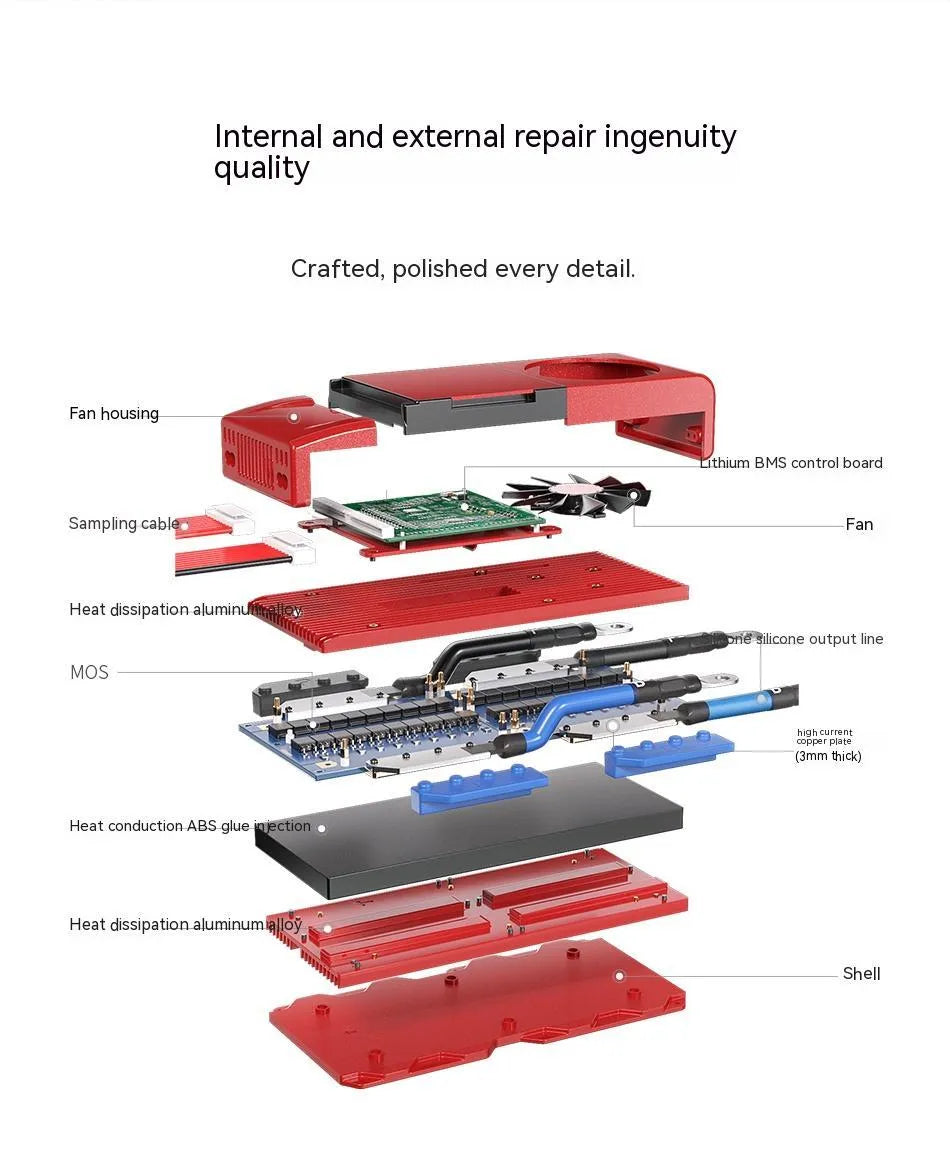

The board is constructed on a standard fibreglass PCB populated with surface-mount and through-hole components, including power MOSFETs that handle the load current, balancing resistors for cell equalisation, and a dedicated control integrated circuit (IC) that monitors cell voltages. Higher-current models utilise an aluminium heatsink or enclosure to dissipate heat effectively. Models specified as "with fan" integrate a small DC cooling fan directly onto the board or its housing to provide active airflow, which is crucial for maintaining component temperatures during prolonged operation at high current levels.

Size and Practical Fit

While exact physical dimensions are not specified, the inclusion of features like integrated fans on higher-power models indicates a progression in board size and complexity relative to the current rating. Lower-current models (e.g., 15A-60A) are typically more compact, suitable for tight battery compartments. The high-current variants with fans will require additional planning for physical placement and airflow within an enclosure. The single-port terminal design aids in a cleaner wiring layout, reducing the number of connection points between the battery, charger, and load.

Uses and Placement

This protection board is a fundamental component for any system using a 12V LiFePO4 battery pack. Its role is to sit between the battery cells and the external world, constantly monitoring and controlling the electrical flow.

Event or Professional Use

In professional, commercial, or high-demand scenarios, selecting the correct current rating is paramount. For electric mobility applications like e-scooters, golf carts, or marine trolling motors, a model rated well above the motor's nominal current draw is essential, with fan-cooled versions (80A+) recommended for sustained high loads. In solar energy storage systems for cabins or telecommunications sites, the BMS ensures the battery bank is not over-discharged at night or overcharged by the solar panels during the day, with current ratings chosen based on inverter draw.

Everyday Home Use

For DIY enthusiasts and homeowners, these boards enable the safe construction of custom 12V battery packs for a variety of projects. Common applications include creating a backup power supply for home servers or networking equipment, building a portable power station for camping or garden tools, or upgrading a caravan/boat's house battery bank to lithium technology. The lower-current models (15A-40A) are often sufficient for lighting systems, small appliances, or tool battery conversions.

Benefits and Buying Value

The value of a dedicated BMS lies in its ability to prevent costly battery failure and enhance safety. Lithium iron phosphate batteries offer excellent cycle life and stability, but they still require proper management to realise their full potential.

Reuse and Low Maintenance

The integrated passive balancing function, featured on all models in this series, is a key maintenance benefit. Over many charge cycles, individual cells within a pack can drift to slightly different voltage levels. The balancing circuit gently bleeds off excess charge from the highest-voltage cells, promoting uniformity. This process happens automatically during the charging cycle, requiring no user intervention and helping to maximise the pack's overall capacity and longevity over hundreds of cycles.

Why Choose This Product

The Dali board provides a clear, specification-driven choice for users. The extensive range of current ratings allows for precise matching to a project's needs, preventing the cost and inefficiency of an under-specified board or the unnecessary expense of an vastly over-specified one. The option for fan cooling on higher-power models addresses a real thermal challenge in high-load applications, offering a practical solution for reliability. Its dedicated design for 4S LiFePO4 chemistry ensures correct voltage thresholds and protection logic are applied, which is safer and more effective than using a generic or adjustable BMS not optimised for this specific battery type.
