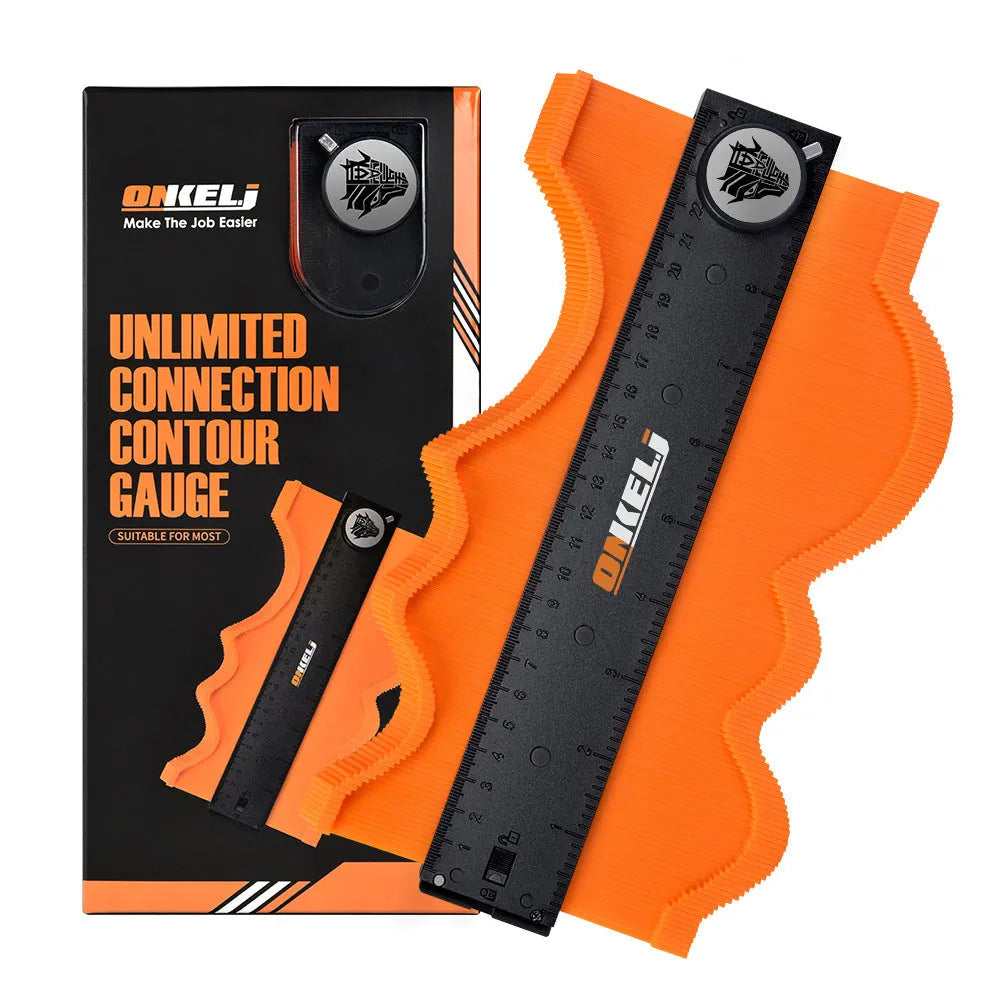

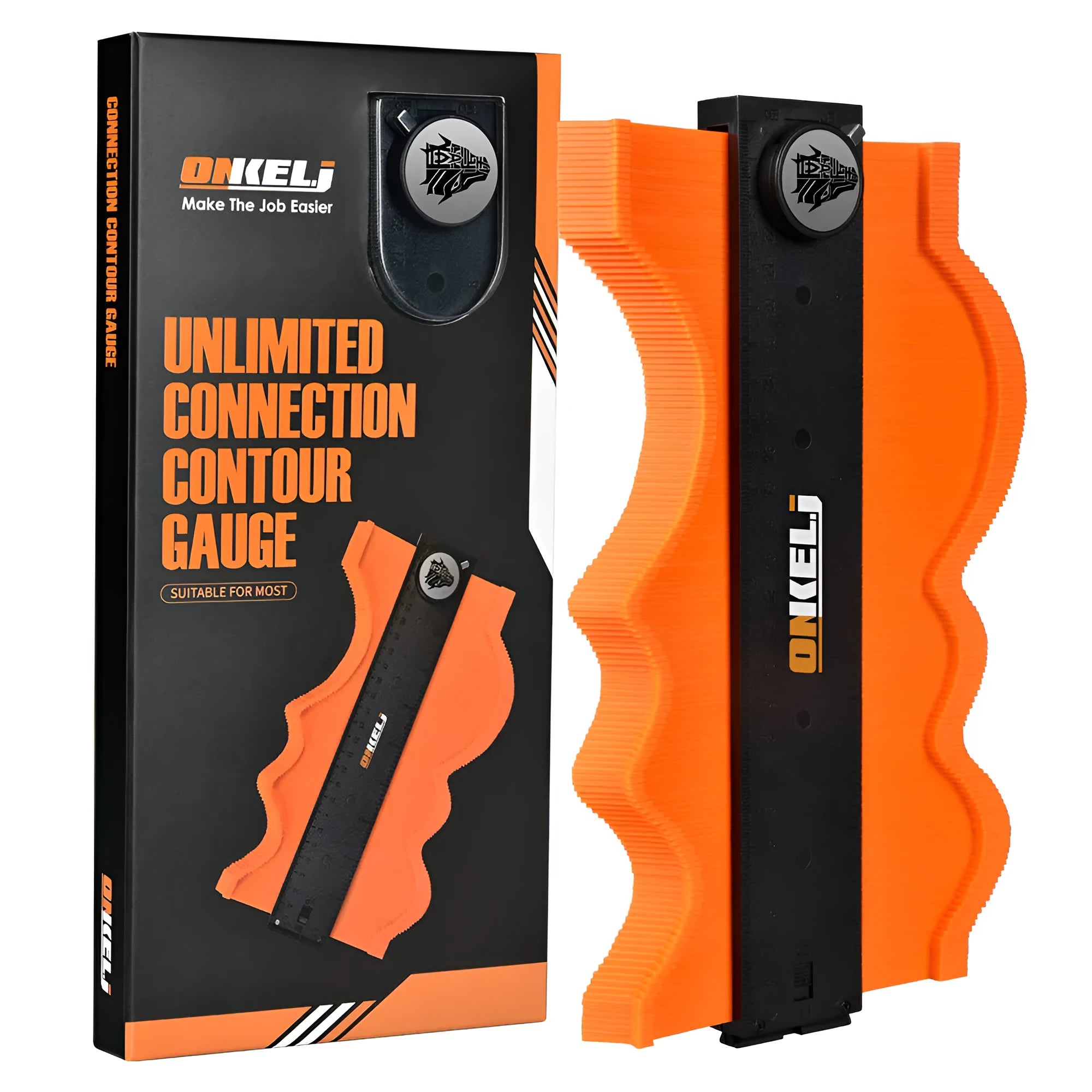

10-Inch Contour Gauge with Infinite Splicing Design and Secure Locking Mechanism

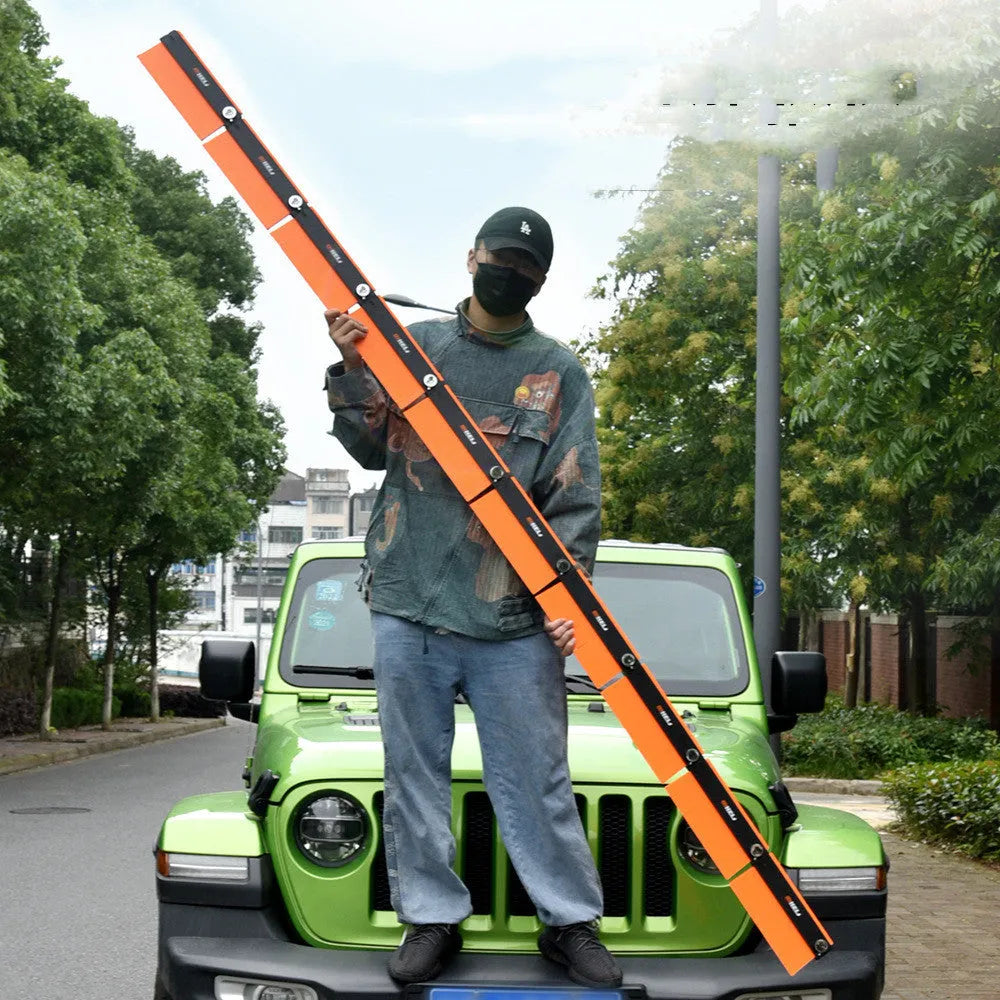

This professional contour gauge tool addresses the practical challenge of accurately transferring irregular shapes and profiles between surfaces, a common requirement in carpentry, tiling, worktop installation and template creation. Unlike fixed-segment contour gauges, its infinite splicing design accommodates both continuous curves and broken profiles without segment limitations, while the integrated locking mechanism securely maintains the configured pin positions during transfer operations. With 1mm measurement accuracy across its 265mm working length and construction combining ABS plastic with stainless steel components, this gauge provides reliable performance for both DIY enthusiasts and professional tradespeople needing precise profile replication.

Features and Construction

The contour gauge incorporates several design elements that enhance its practical functionality for shape transfer applications. From its material composition to measurement systems, each aspect contributes to accurate profile replication across various working scenarios.

Material and Build

Constructed from ABS plastic for the main body, this contour gauge benefits from the material's impact resistance and dimensional stability during use. The stainless steel components ensure measurement accuracy is maintained while providing corrosion resistance important for workshop environments. This material combination balances durability with precise functionality, supporting repeated use across multiple projects without significant performance degradation. The tool's construction focuses on practical performance rather than aesthetic considerations, with functionality prioritised throughout the design.

Size and Practical Fit

Measuring 265mm in length, 130mm in width and 27mm in depth, the gauge provides substantial working area for most common contour transfer requirements. The 10-inch profile capacity accommodates typical skirting board heights, worktop edges and tile patterns encountered in renovation and installation projects. Its dimensions allow comfortable handling during contour setting while providing sufficient pin density for detailed profile replication. The tool's physical proportions make it suitable for both confined spaces and open workshop environments where accurate template creation is required.

Uses and Placement

This contour gauge serves multiple applications across different working environments, from professional trade settings to home improvement projects. Its design accommodates various profile transfer requirements without specialised tool adjustments.

Event or Professional Use

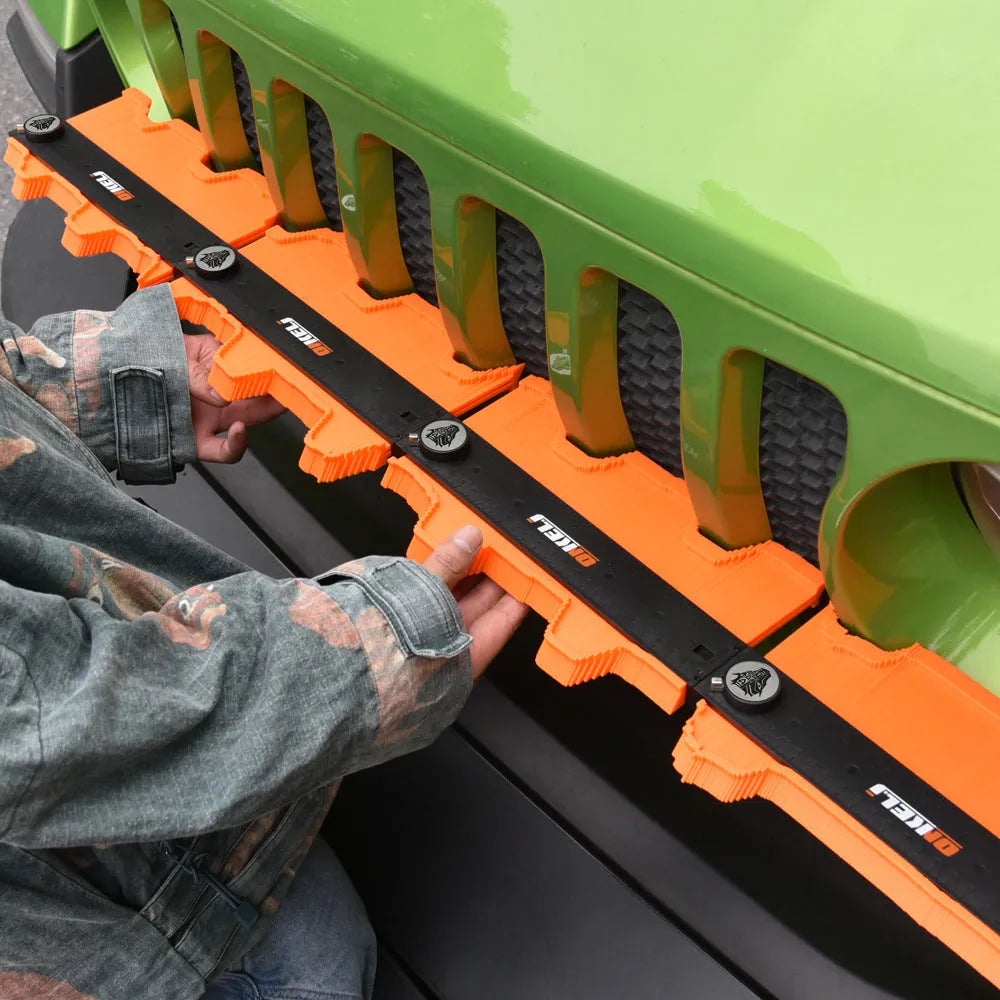

For trade professionals including carpenters, tilers and kitchen fitters, the gauge provides accurate profile replication for installation work requiring precise material fitting. The infinite splicing design accommodates architectural mouldings, irregular wall contours and custom worktop edges without segment limitations affecting accuracy. Professionals benefit from the locking mechanism maintaining configured profiles during measurement transfer between job site locations, reducing setup time and improving installation precision. The 1mm accuracy supports professional standards for finish quality in paid work environments.

Everyday Home Use

DIY enthusiasts find this contour gauge valuable for home improvement projects involving skirting board replacement, tile fitting around obstacles and custom shelf creation. The tool simplifies transferring awkward shapes between existing structures and new materials, particularly useful when working with irregular wall surfaces or architectural features. Home users appreciate the straightforward operation requiring minimal technical knowledge, with the locking mechanism preventing accidental pin movement during measurement. The gauge supports accurate template creation for one-off projects where custom fitting is required without professional assistance.

Benefits and Buying Value

The contour gauge offers practical advantages through its design features and construction approach, providing measurable benefits for users requiring accurate profile transfer capabilities.

Reuse and Low Maintenance

Constructed from durable ABS plastic and stainless steel, the gauge supports repeated use across multiple projects without significant wear affecting measurement accuracy. The materials require minimal maintenance beyond basic cleaning with a dry cloth, with no specialised lubrication or calibration needed between uses. This reduces long-term ownership costs while maintaining performance consistency, particularly valuable for trade professionals using the tool regularly. The simple mechanical design without electronic components eliminates battery requirements and complex troubleshooting.

Why Choose This Product

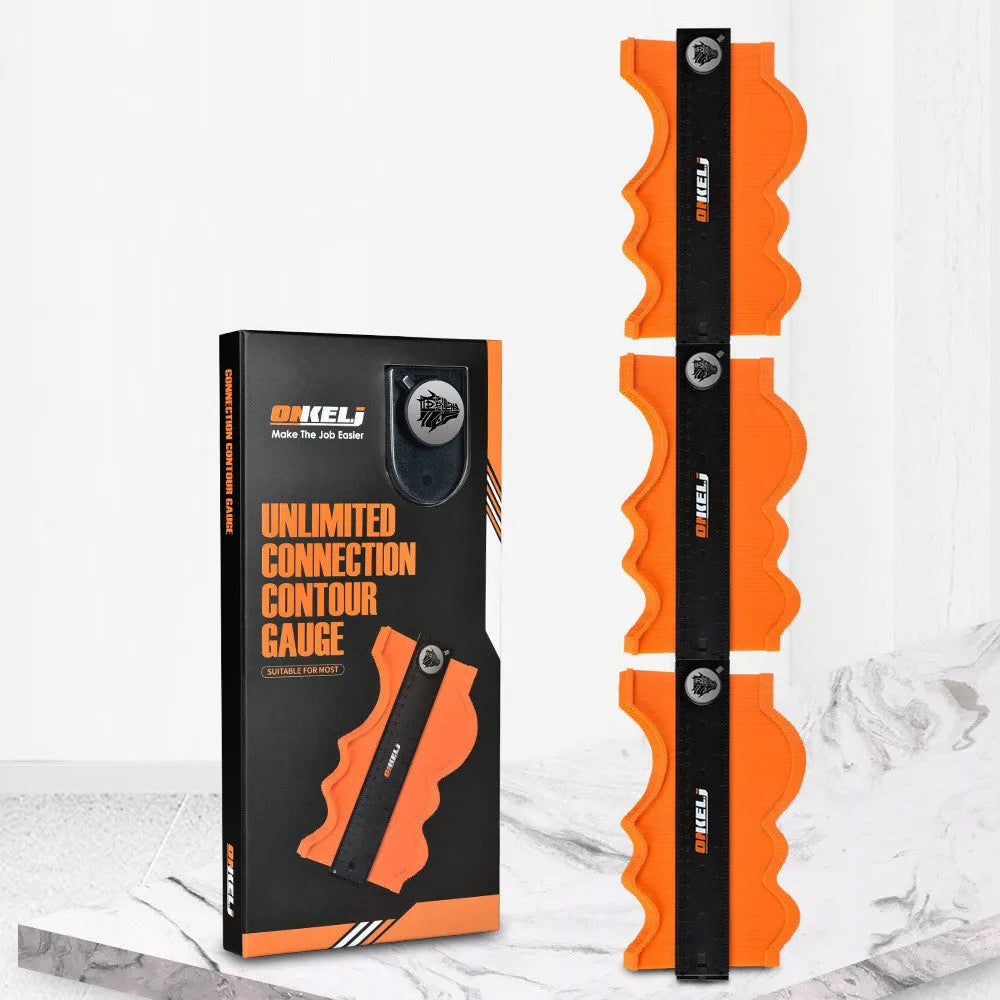

This contour gauge distinguishes itself through its infinite splicing design accommodating both continuous and broken curves without fixed segment limitations affecting profile accuracy. The locking mechanism provides security during measurement transfer that fixed-position gauges cannot offer, particularly valuable when working across different locations. With 1mm accuracy across its 265mm working length, the tool meets practical requirements for most common contour transfer applications without unnecessary complexity. The material combination balances durability with precise functionality, offering reliable performance at accessible tooling price points.
